Brand Name : ZXTLCD
Model Number : ZXTLCD-BAR190MTQSP
Certification : CE/Rohs/FCC/ERP Energy Label
Place of Origin : China
MOQ : 1pcs
Price : Negotiate
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 300pcs per month
Delivery Time : 7~10 working days
Packaging Details : Machine body appearance wrapped in pearl carton firstly, packedin wooden box
Screen size : 19" LCD Panel
Active display area : 476.64(H) X 80(V)mm
Resolution : 1920(V) X 540(H)
Brightness : 500cd/m2
Viewing angles : 89°/89°/89°/89°(U/D/L/R)
Lifespan : 50000 hours
Interfaces : USB2.0 / HDMI*2 / TF/Audio/DC IN
Touch type : Projected Capacitive Touchscreen
Backlight type : WLED
Operating voltage : USB 12V/2A
19" stretched LCD Monitor with PCAP Touch Panel Integrated Bar-Type Ultra Wide Display
Product Features
• Available in a range of Screen Sizes from 16″ to 88″.
• High Brightness Sunlight Readable LED Backlight
• Unique aspect ratio to catch viewers attention
• Available as enclosed monitors or component parts for integration
• Industrial grade LCD solutions for optimum performance and reliability
• PCAP Touch Screen options available
• Digital Signage / Monitors / Touch monitors design options available.
The specification
The specification | ||
Model No | Product model | ZXTLCD-BAR190MTQSP |
LCD Screen Panel | Screen size | 19" LCD Panel |
Active display area | 476.64(H) X 80(V)mm | |
Resolution | 1920(V) X 540(H) | |
Brightness | 500cd/m2 | |
Contrast ratio | 1200:1 | |
Display color | 16.7M | |
Backlight type | WLED | |
Viewing angles | 89°/89°/89°/89°(U/D/L/R) | |
Response time | 9.5ms | |
Lifespan | 50000 hours | |
Main board | CPU | MSTAR V56(TSUMV56RUU) |
Interfaces | USB2.0 | |
HDMI*2 | ||
TF/Audio/DC IN | ||
Touchscreen | Touch type | in-TOUCH (P-Cap in-cell Touch) |
machine specification | Operating voltage | USB 12V/2A |
Power consumption | ≤25W | |
Product size | 522.64(H)X126(V)X42.66(D)mm | |
Installation | Embedded, wall-mounted | |
Appearance material | Metal shell | |
Net weight | ≤3.8KG | |
Surface treatment | Black metal paint | |
Environmental | Storage Environment | Temperature:-20℃~60℃ |
Humidity:5%~95% | ||
Atmospheric Pressure:86kPa~104kPa | ||
Working Environment | Temperature:-10℃~50℃ | |
Humidity:10%~85% | ||
Atmospheric Pressure:86KPa~104KPa | ||
Packing list | Bar lcd display | 1pcs |
Power Cable | 1Pcs | |
Support special requirements customization |

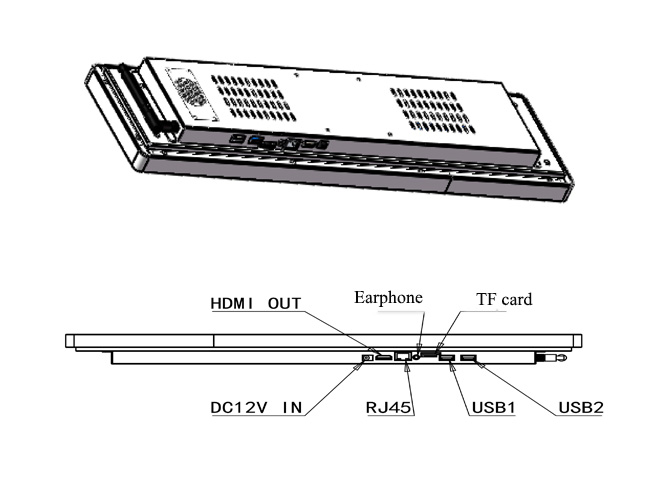

The design drawing as follows :
Product physical photo for reference :
The specification of Capacitive touch screen panel
Touch Method | Finger or Pen |
Touch points | 10 Points |
Touch strength | 10-60g |
Finger touch time | ≥35,000,000 times |
Withstand pressure | <10g |
Surface hardness | ≥7H |
storage temperature | -15°C~40°C,<90%RH;40°C~70°C,<60%RH |
Relative humidity | 10%~90%RH at 40°C, non-condensing |
Response time | <10ms |
Transmittance | >85% |
thickness | (1.1mm)+TopITO Film(0.125mm) +Bottom ITO Film(0.125mm) |
Durability | Touch 50,000,000 times in the same position to work normally |
Product Phycial Photo for reference
Want To Get In Touch?
If you would like to discuss your requirement or need any additional information on our Stretched (Cut) lcd monitor with touchscreen, and then please do not hesitate to contact our sales team.
![]() |
